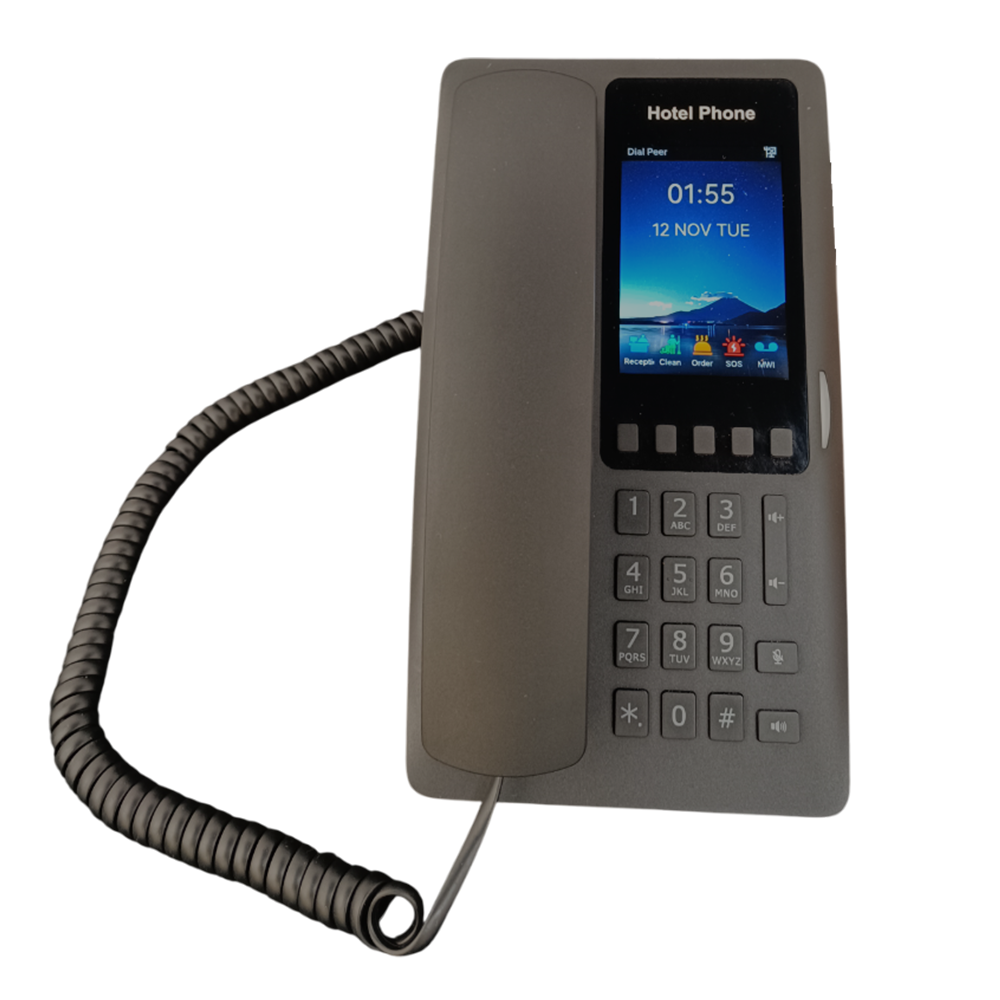

ACE V5500-IP-Wifi (with 5 Guest Service Keys)
Part Code:V5500IP-Wifi

Downloads
Click on the links below for information about the ACE V5500IP-Wifi hospitality Phone
The ACE V5500IP-Wifi Hotel Phone has multiple functions and is equipped with 5, programmable Guest Service Keys. The background image can be fully customised to incorporate your hotel logo.
3.5 inch 320×480 IPS screen, customisable background image
2 SIP lines
5 programmable Guest Service Keys with icon images
Built-in dual band 2.4GHz (Europe) & 5GHz (US – Wifi6)
Factory default SSID configuration
Sleep mode to reduce energy consumption
USB interface charging, no need for additional converters
Hand set/ hands-free mode
Optional external power supply
5 programmable Guest Service Keys
Call out/ answer
Mute/unmute
Call hold/resume
Speed dial
Redial
Hot line
Voice Message
5 programmable Guest Service Keys
Web Dial
Dial plan
SIP hotspot
Distinctive ring
Multicast
Action URL/Active URI
Built-in dual band 2.4GHZ & 5GHz Wifi (Wifi 6)
2.4 GHz, 802.11 b/g/n
5 GHz 802.11 a/n/ac/ax
Web dial
Dial plan
Sip Hotspot
Distinctive Ring
Multicast
Call out / answer
Mute/ unmute
Call hold / resume
Speed dial
Redial
Hot line
Voice Message
Wideband ADC/DAC 16KHz sampling
Narrowband Codec: G.711A/U, G.729AB, G723.1, G726,iLBC
Wideband Codec: G.722 Opus
Full-duplex hands-free speakerphone with AEC
Voice Activity Detection (VAD)/ Comfort Noise Generation (CNG)/ Background Noise Estimation (BNE)/ Noise Reduction (NR) / Automatic Gain Control (AGC)
Packet loss concealment
Dynamic Adaptive jitter buffer
DTMF:in-band, out-of-band-DTMF-relay (RFC2833)/SIP Info
VQM voice quality monitoring
10/100Mbps Ethernet
IP Mode: IPv4/IPv6/IPv4&IPv6
IP Configuration: Static/ DHCP/PPPoE
Wifi Encryption: WPA/WPA2-PSK/802.XEAP
Network Access Control: 802.1x
VPN: L2TP/OpenVPN
VLAN:802.1P/Q
Qos
LLDP
RTCP-XR (RFC3611),VQ-RTCPXR (RFC6035)
SIP v1(RFC2543), v2 (RFC3261) over UDP/TCP/TLS
STUN
DHCP
IPv6
PPoE
L2TP
OpenVPN
SNTP
FTP/TFTP
HTTP/HTTPS
TR-069
Auto provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR-069
Web management portal
Web-based packet dump
Configuration export/ import
Firmware upgrade
Syslog
LCD: 3.5 inch 320×480 screen
5 programmable service keys
3 function keys (Up/Down/Mute)
Message Waiting Indicator
USB-A Port
Power Consumption (PoE): 1.56~8.29W
Power Consumption (Adaptor): 0.97~6.08W
Working temperature: 0~45°C
Working humidity: 10-96°C
Available Models
ACE V5500IP-Wifi
Wifi IP Hotel Phone with LCD display, 5 Guest Service Keys, multiple hospitality call features
