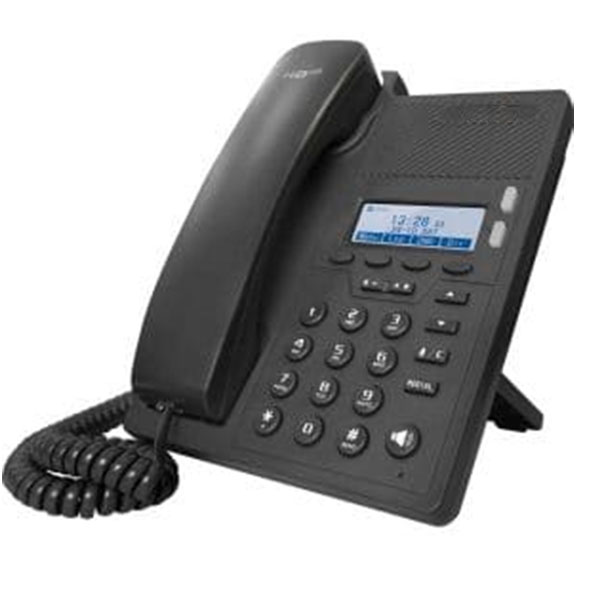

Vivo 205 Hotel Office Phone

Part CodeVOT205IP


Click on the link below for information about the Vivo OT20 hotel office phone

The Vivo 205IP is a compact office IP phone with rich features. It has a 128*64 HD graphic LCD up to 4-line display. It also has HD voice (G.722), unique contemporary design, demountable bracket to provide multi-angle display, 9 programmable keys and a user-friendly interface.

Support 2 lines;
Support demountable bracket to provide multi-angle;
Support 9 programmable keys;
Support Multi-language,e.g:Chinese,English,French,Russian,Italian and etc.
2*10/100M Ethernet ports,support POE;
Auto-provision, HTTP/TFTP/FTP

2 SIP accounts, MWI(Line1)
Call hold, Call waiting, Call forward, Call return; Call
transfer (blind/busy/ask)
Caller ID display, Redial, Mute, DND
Auto-answer, 3-way conferencing
Speed dial, SMS, Voicemail
Tone scheme, Volume control
Direct IP call without SIP proxy
Ring tone selection/import/delete
Black list, Hand-free indicator.
Call history: dialed/received/missed (50 -entries);
Soft keys programmable, Supports PC control

128*64 graphic LCD with back light
25 keys, including 9 programmable keys,
2 LEDs: 2* account lights, including MWI(L1)
1* RJ9 handset port
2xRJ45 10/100M Ethernet ports
Power adapter: AC 100~240V input and
DC 5V/1A output
Power over Ethernet ,IEEE 802.3af,class 0(Option)
Power consumption: 1.5W
Net weight: 0.62kg
Dimension: 213*157*39mm
Operating humidity: 10~95%
Storage temperature: up to 60°C

9 programmable keys(2x lines, 4x softkeys,
Navigation key UP&Down, 1x Redial key)
XML Phone Book search and input & output
Enterprise phone book(2000 entries)
Personal Phonebook(1000 entries)
LDAP phone book

Busy lamp field (BLF), BLF list
Bridged line appearance (BLA)
DND & Forward synchronization
Intercom, Paging, Music on hold
Call pickup, Dial Plan, Call recording Anonymous call,
Anonymous call rejection
Network conference, Distinctive ring tone

Wideband Codec: G.722
Narrowband codec: G.711μ/A, G.726, G.729AB,iLBC
VAD, CNG, AEC, AGC, Full-duplex

LLDP, VLAN QoS (802.1pq),VPN(L2TP)*
Transport Layer Security (TLS) *
Digest authentication using MD5/MD5-sess
Secure configuration file via AES encryption *
Encryption for configuration file *
Phone lock for personal privacy protection
Admin/User 2-level configuration mode , LLDP, CDP
L2TP VPN tunneling protocol – added

SIP v1 (RFC2543), v2 (RFC3261)
SIP connection: Proxy mode & Peering Points mode;
SRTP voice encryption(RFC3711)
Redundant server support
NAT Traversal: STUN mode
DTMF: In-Band, RFC2833, SIP Info, Auto
HTTP Web Management
IP Assignment: Static/DHCP/PPPoE
Bridge/Router mode for PC port
Telnet/HTTP/HTTPS server, DNS client, NAT/DHCP server

Auto-provision via FTP/TFTP/HTTP/HTTPS
Configuration: browser/phone/auto-provision
Trace package and system log export

TR069,IPv6,HTTPS web management,802.1x,OPEN

ZTE, Alcatel-Lucent, Asterisk, Broadsoft, Metaswitch, GENESYS, Yeastar, Avaya, 3CX, Elastix, Huawei, NEC

Available Models


Compact office IP phone with rich features. It has 128*64 HD graphic
LCD up to 4-line display; it also has HD voice(G.722), unique art design, demountable bracket to provide multi-angle,9 programmable keys, and friendly user interface to satisfy users communication needs.
